SSPHS8L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 8mm Bore M8x1.25mm Thread

SSPHS8L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 8mm Bore M8x1.25mm Thread
SSPHS8L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 8mm Bore M8x1.25mm Thread
SSPHS8L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 8mm Bore M8x1.25mm Thread
SSPHS8L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 8mm Bore M8x1.25mm Thread
SSPHS8L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 8mm Bore M8x1.25mm Thread
Information
Inside Diameter 8mm
Brand Premium Economy
Thread Size M8x1.25mm

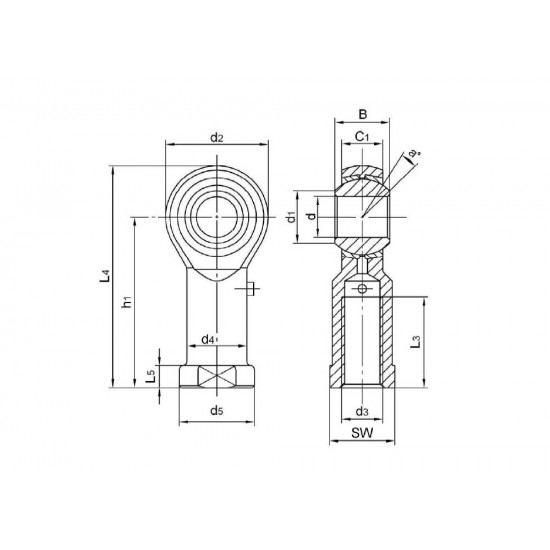

Technical Specifications
a° mis. Angle 14
B 12mm
Ball Diameter 15.87mm
C1 9mm
d 8mm
d1 10.3mm
d2 22mm
d3-6H M8x1.25mm
d4 12.5mm
d5 16mm
Dynamic Load C 5.4 kN
h1 36mm
L3 16mm
L4 47mm
L5 5mm
Static Load CO 12.6 kN
SW 14mm
Weight 0.043 Kg
