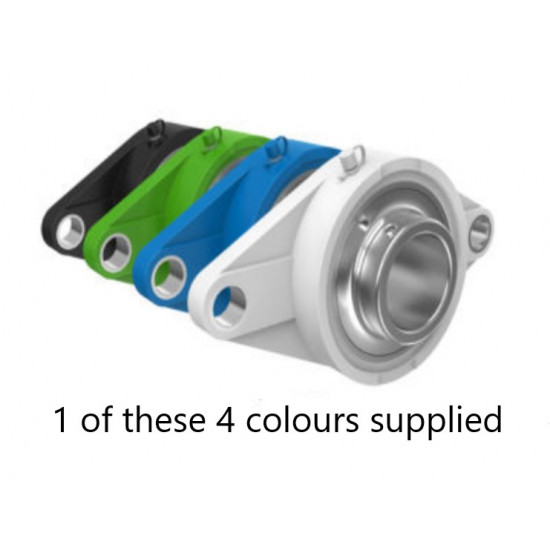

SSUCTFL205 Thermoplastic Two Bolt Oval Flange Housing with a 25mm Bore Stainless Insert

SSUCTFL205 Thermoplastic Two Bolt Oval Flange Housing with a 25mm Bore Stainless Insert
SSUCTFL205 Thermoplastic Two Bolt Oval Flange Housing with a 25mm Bore Stainless Insert
SSUCTFL205 Thermoplastic Two Bolt Oval Flange Housing with a 25mm Bore Stainless Insert
SSUCTFL205 Thermoplastic Two Bolt Oval Flange Housing with a 25mm Bore Stainless Insert
SSUCTFL205 Thermoplastic Two Bolt Oval Flange Housing with a 25mm Bore Stainless Insert
Information
Product Type Housings & Inserts Thermoplastic
Inside Diameter 25mm
Brand Premium Economy

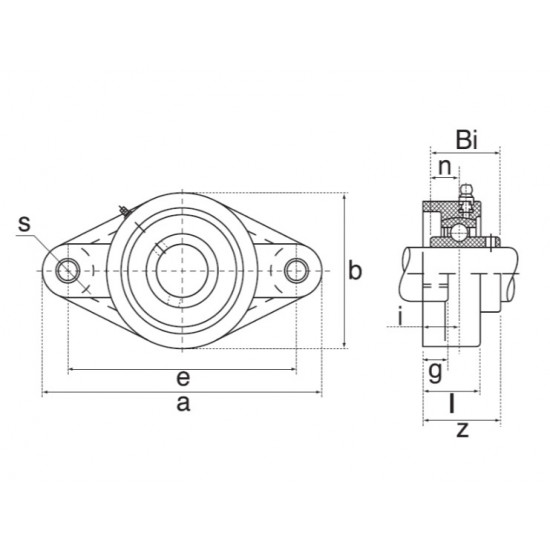

Technical Specifications
Bi 34mm
a 134mm
b 70mm
Bearing No. SUC205
d 25mm
Dynamic Load C 11000 N
e 99mm
g 14.3mm
i 17mm
l 28mm
n 14.3mm
s 36.2mm
Static Load C0 7100 N
z 36.7mm
NEXT DAY DELIVERY | Stripe | PayPal | Visa | Mastercard
£22.00
Equivalent to: PSFT25CR
