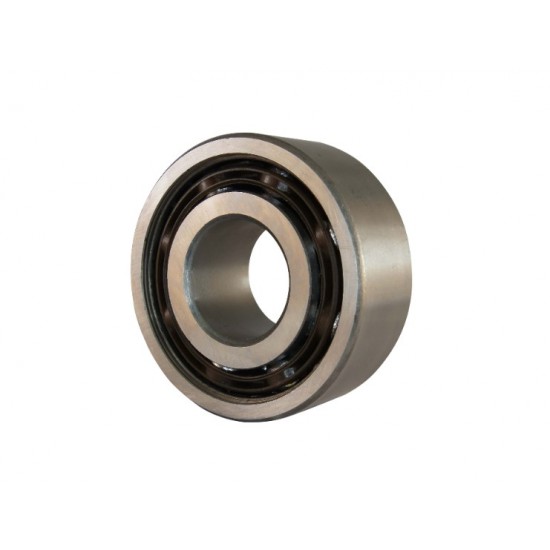

5313 Nachi Branded Double Row Angular Contact Ball Bearing 65x140x58.7mm

5313 Nachi Branded Double Row Angular Contact Ball Bearing 65x140x58.7mm
5313 Nachi Branded Double Row Angular Contact Ball Bearing 65x140x58.7mm
5313 Nachi Branded Double Row Angular Contact Ball Bearing 65x140x58.7mm
5313 Nachi Branded Double Row Angular Contact Ball Bearing 65x140x58.7mm
5313 Nachi Branded Double Row Angular Contact Ball Bearing 65x140x58.7mm
Information
Inside Diameter 65mm
Outside Diameter 140mm
Width 58.7mm
Brand Premium Branded
Clearance Standard
Technical Specifications
da max 76mm
a 71mm
B 58.7mm
Bearing With Shields 33132Z
d 65mm
D 140mm
d2 77.5mm
D2 111mm
Da max 111mm
da min 74mm
Dynamic Load C 146 kN
kr 0.06
Limiting Speed Bearing with Shields 4500 rpm
Load Limit Pu 4.55 kN
r1,2 min 1.5mm
ra max 1.5mm
Static Load CO 110 kN
NEXT DAY DELIVERY | Stripe | PayPal | Visa | Mastercard
£122.00
Equivalent to: 3313B2ZTV
