FC20A RHP 4 Bolt Round Cast Iron Flanged Bearing Unit with a 20mm Bore

FC20A RHP 4 Bolt Round Cast Iron Flanged Bearing Unit with a 20mm Bore
FC20A RHP 4 Bolt Round Cast Iron Flanged Bearing Unit with a 20mm Bore
FC20A RHP 4 Bolt Round Cast Iron Flanged Bearing Unit with a 20mm Bore
FC20A RHP 4 Bolt Round Cast Iron Flanged Bearing Unit with a 20mm Bore
FC20A RHP 4 Bolt Round Cast Iron Flanged Bearing Unit with a 20mm Bore
Information
Product Type Housings & Inserts
Inside Diameter 20mm
Brand RHP

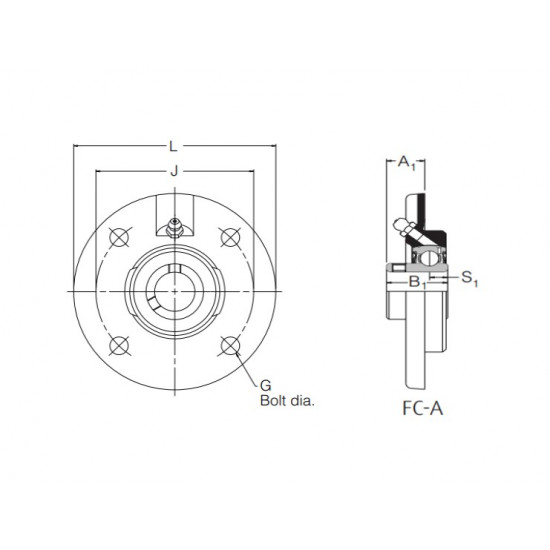

Technical Specifications
A 17mm
B 31mm
B1 25.8mm
B2 31.03mm
B3 43.73mm
Dynamic Load C 12800 N
G 8mm
H 62mm
J 78mm
s 12.73mm
s1 7.53mm
Static Load CO 6650 N
Weight 0.7 Kg
Bearing Insert 1020
Casting Group 2
Rec. max Speed rev/min 6700 rpm
L 100mm
A1 16.29mm
A2 21.45mm
A3 24.57mm
Shaft Dia. 20mm
A4 8mm
s2 17.13mm
