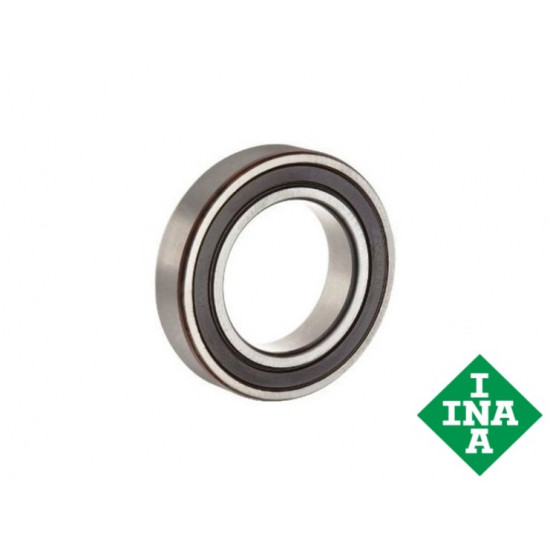

3804B2ZRTVH Branded Double Row Angular Contact Ball Bearing 20x32x10mm

3804B2ZRTVH Branded Double Row Angular Contact Ball Bearing 20x32x10mm
3804B2ZRTVH Branded Double Row Angular Contact Ball Bearing 20x32x10mm
3804B2ZRTVH Branded Double Row Angular Contact Ball Bearing 20x32x10mm
3804B2ZRTVH Branded Double Row Angular Contact Ball Bearing 20x32x10mm
3804B2ZRTVH Branded Double Row Angular Contact Ball Bearing 20x32x10mm
Information
Inside Diameter 20mm
Outside Diameter 32mm
Width 10mm
Brand Premium Branded
Clearance Standard
Seals / Shields Metal Shielded
Technical Specifications
a 14.3mm
B 10mm
Contact Angle a 25 Degrees
d 20mm
D 32mm
d1 max 24.3mm
Da max 30mm
da min 22mm
Dynamic Load C 5800 kN
Limiting Speed 11900 rpm
Load Limit Pu 245 kN
r min 0.3mm
ra max 0.3mm
Reference Speed 10000 rpm
Static Load CO 4850 kN
NEXT DAY DELIVERY | Stripe | PayPal | Visa | Mastercard
Based on 0 reviews. - Write a review
£21.34
Add to Cart
Add to Wish List
Equivalent to: 3804B2ZTVH , 5804B2ZTVH
