BT1-3/8 RHP Cast Iron Conveyor Belt Tensioner Unit with a 1-3/8 inch Bore Insert

BT1-3/8 RHP Cast Iron Conveyor Belt Tensioner Unit with a 1-3/8 inch Bore Insert
BT1-3/8 RHP Cast Iron Conveyor Belt Tensioner Unit with a 1-3/8 inch Bore Insert
BT1-3/8 RHP Cast Iron Conveyor Belt Tensioner Unit with a 1-3/8 inch Bore Insert
BT1-3/8 RHP Cast Iron Conveyor Belt Tensioner Unit with a 1-3/8 inch Bore Insert
BT1-3/8 RHP Cast Iron Conveyor Belt Tensioner Unit with a 1-3/8 inch Bore Insert
Information
Product Type Housings & Inserts
Inside Diameter 34.925mm = 1-3/8 inch
Brand RHP

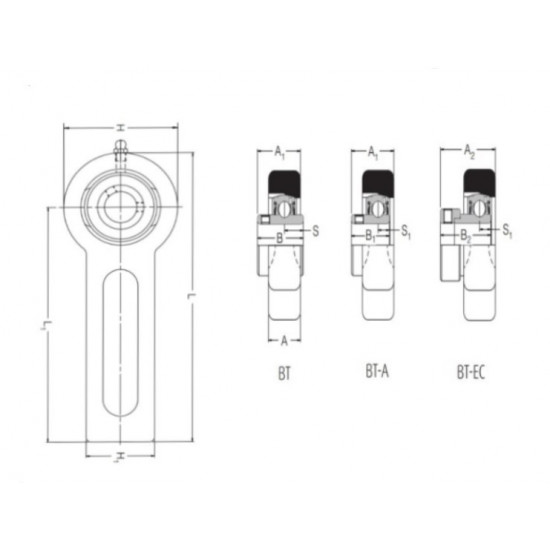

Technical Specifications
A 22mm
B 42.9mm
B1 34.9mm
B2 38.93mm
Dynamic Load C 25700 N
H 98mm
H1 42.5mm
L1 225mm
s 17.53mm
s1 9.53mm
Static Load CO 15300 N
Weight 2.3 Kg
Bearing Insert 1035
Casting Group 5
Rec. max Speed rev/min 4500 rpm
L 274mm
A1 36.13mm
A2 40.2mm
Shaft Dia. 34.925mm = 1-3/8 inch
NEXT DAY DELIVERY | Stripe | PayPal | Visa | Mastercard
Based on 0 reviews. - Write a review
£103.91
Add to Cart
