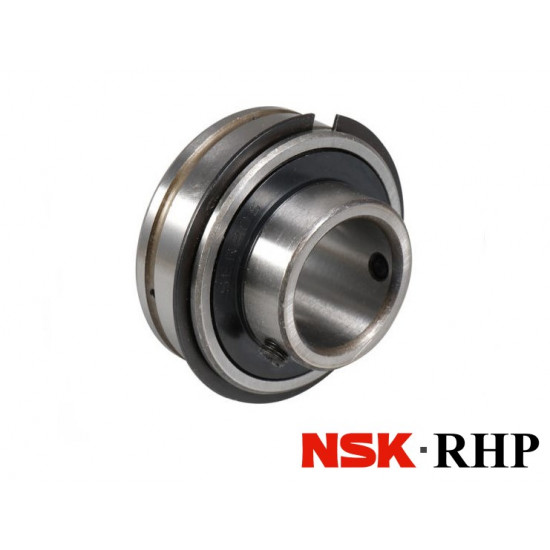

1125-7/8CG RHP Bearing Insert 7/8 Inch Bore Complete with Snap Ring

1125-7/8CG RHP Bearing Insert 7/8 Inch Bore Complete with Snap Ring
1125-7/8CG RHP Bearing Insert 7/8 Inch Bore Complete with Snap Ring
1125-7/8CG RHP Bearing Insert 7/8 Inch Bore Complete with Snap Ring
1125-7/8CG RHP Bearing Insert 7/8 Inch Bore Complete with Snap Ring
1125-7/8CG RHP Bearing Insert 7/8 Inch Bore Complete with Snap Ring
Information
Product Type Housings & Inserts
Inside Diameter 22.23mm = 7/8 inch
Brand RHP
Technical Specifications
B 34.10mm
C 19.05mm
C1 2.39mm
C2 4.39mm
D 52.000mm
d1 34.00mm
D1 57.81mm
Dynamic Load C 14000 N
f 1.12mm
M 5.00mm
r 1.00mm
s 14.33mm
Static Load CO 7880 N
Weight 0.31 Kg
Rec. max Speed rev/min 6250 rpm
Shaft Dia. 22.23mm = 7/8 inch
r1 0.50mm
